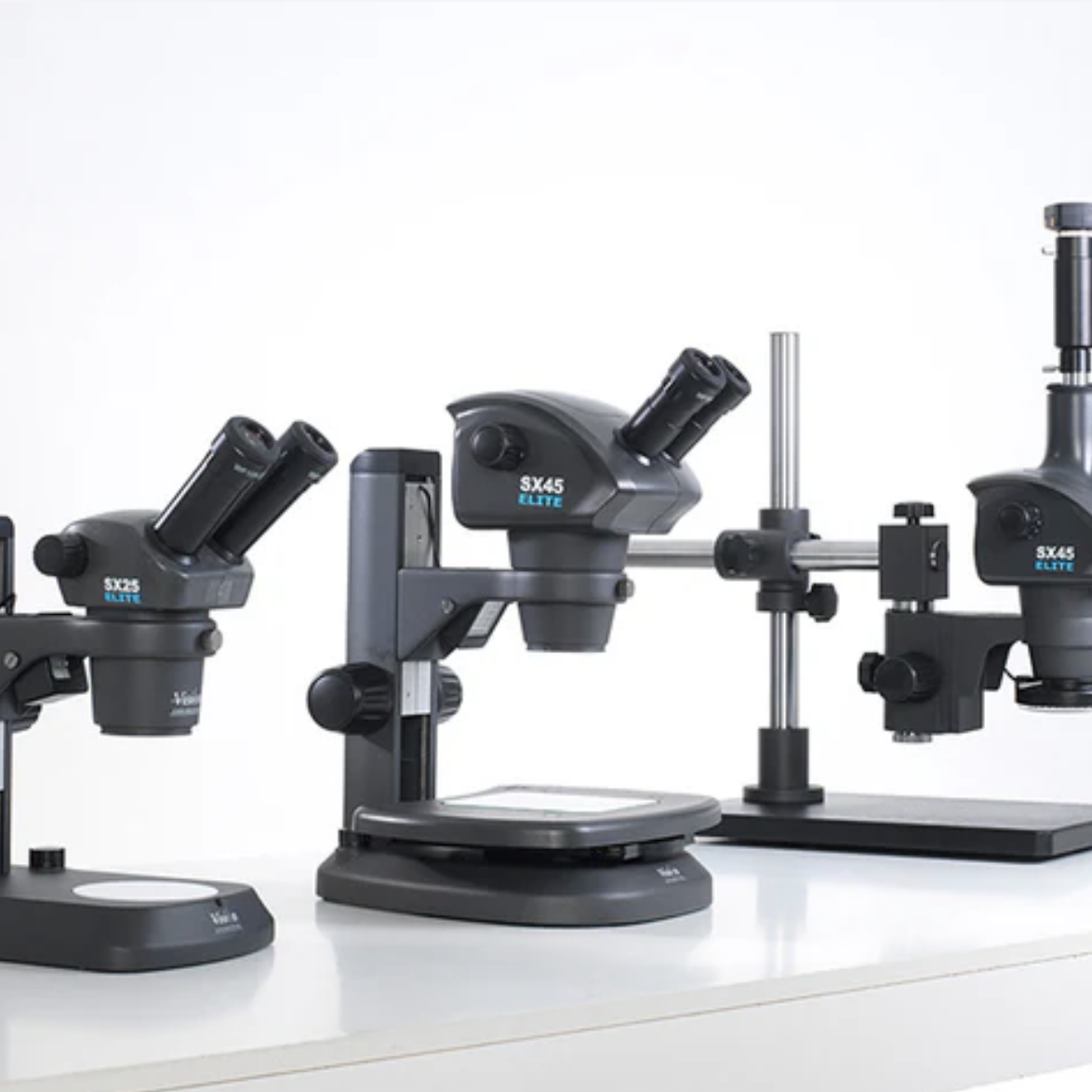

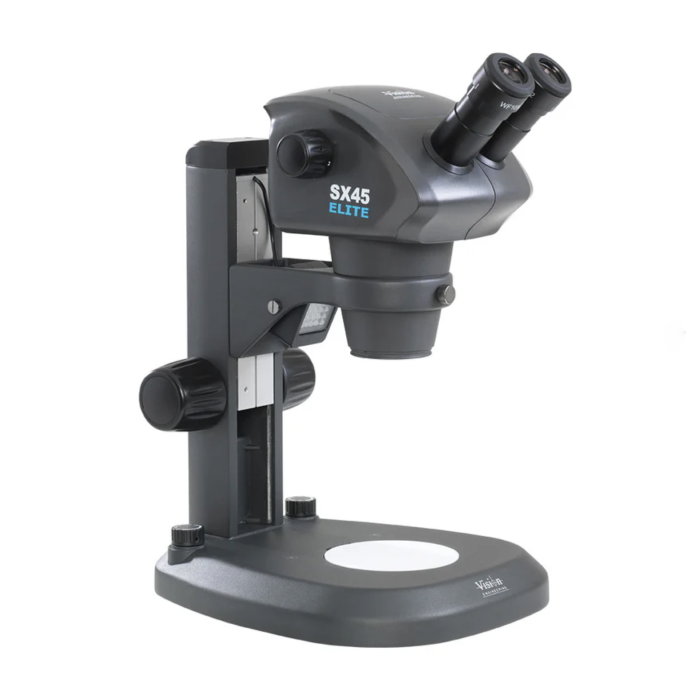

Vision SX45 Elite Stereo Microscopes

Extra-long working distance compact zoom stereo binocular microscope

The SX45 is a long working distance zoom stereo binocular microscope. Robust and easy to use, it delivers high resolution, flat field imaging and is the ideal solution for routine industrial applications, such as working on small components and PCBs (printed circuit boards) and inspecting items for quality control. A 6.25:1 zoom provides a magnification range of  x8-x50 click stop magnification up to x200 with an extra-long working distance up to 200mm.

Options available include Trinocular head and digital camera, LED ringlight, floating stage, polarisation set, measurement / comparison.

Enquire
Request a Demo

Specifications

Product Highlights

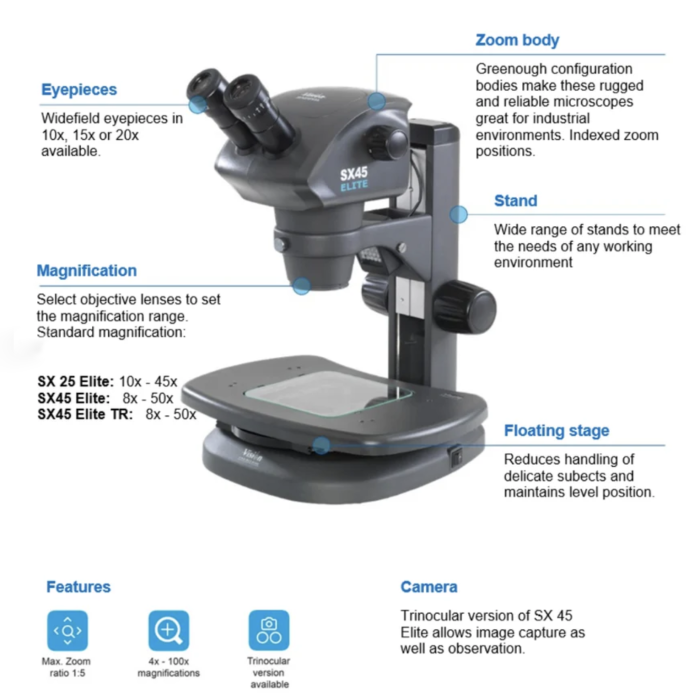

  • Affordable stereo zoom microscope with first class performance
  • SX45 Elite TR features a trinocular head enabling fitment of a camera
  • Wide range of options and configurations to tailor to your individual requirements - available with bench stand, boom mount or articulated arm
  • Key Numbers

  • x8-x50 click-stop stereo zoom magnification (x200 max)

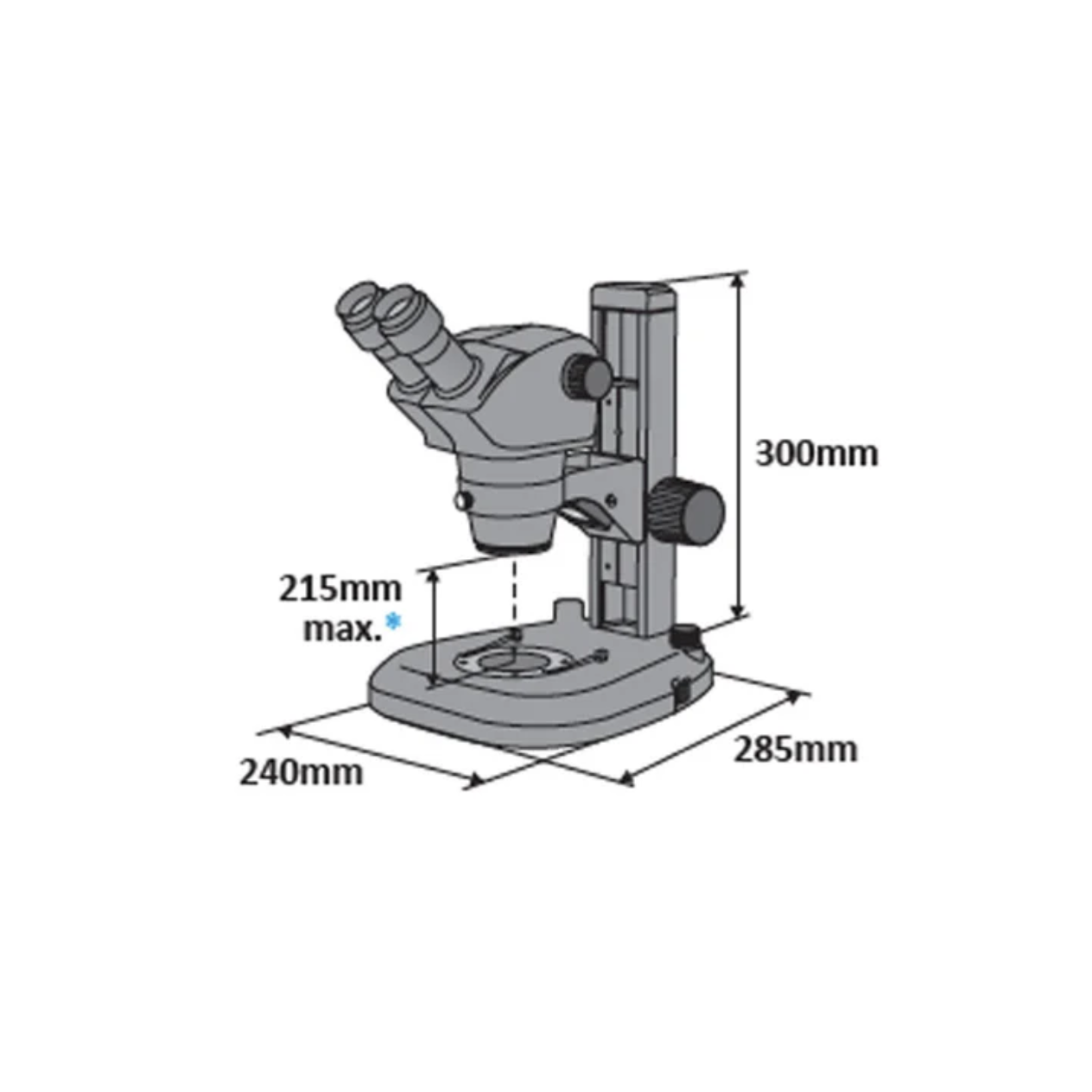

  • Extra long working distance (115mm with standard x1.0 objective lens)
  • Accessories

    Available with a wide range of accessories including:

  • Trinocular head and digital camera - for image capture and archive
  • LED ringlight
  • Floating stage
  • Polarisation set
  • Measurement / comparison graticule
