Vertical Focus Probing Explained

Published: 6/16/2026

Two good reasons to look at the Alicona G6

Vertical Focus Probing on the new Alicona G6 for

1. Fast and contactless optical measurement of steep flanks
2. No need to articulate the sample to measure

The new Alicona G6 with Focus-Variation technology

• Higher resolution and improved optics to analyse previously unmeasurable areas with more accurate results
• Groundbreaking user experience – much faster and quieter
• MetMax for intuitive measurement planning on CAD, integrated reporting automated workflows and full offline simulation

Call us now for an on-line demonstration of this exciting new technology 01858 436940

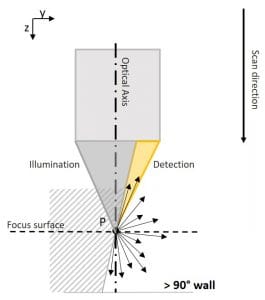

What is Vertical Focus Probing?

Fast contactless measurement of surfaces with a slope of more than 90′

Geometries such as bore holes of injection valves in the automotive industry have been traditionally difficult to measure optically. Usually limited to tactile measuring systems, CT or complex customized solutions. Vertical Focus Probing changes this and makes possible optical probing and measurement of the entire surface of components as standard
