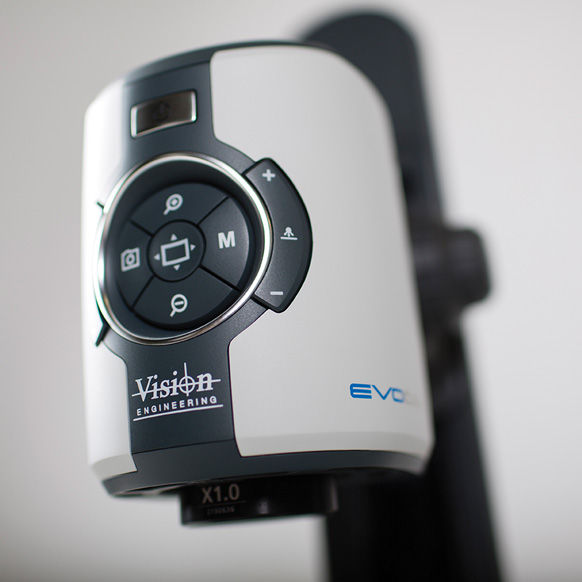

Vision Evo Cam Measure-Digital Measuring Microscope
A digital measuring microscope with UKAS traceable calibration capabilities
EVO Cam Measure combines the excellent EVO Cam II and new Dimension II software, to deliver a high performance digital measuring microscope that has the potential to have UKAS traceable calibration for an additional level of accuracy.

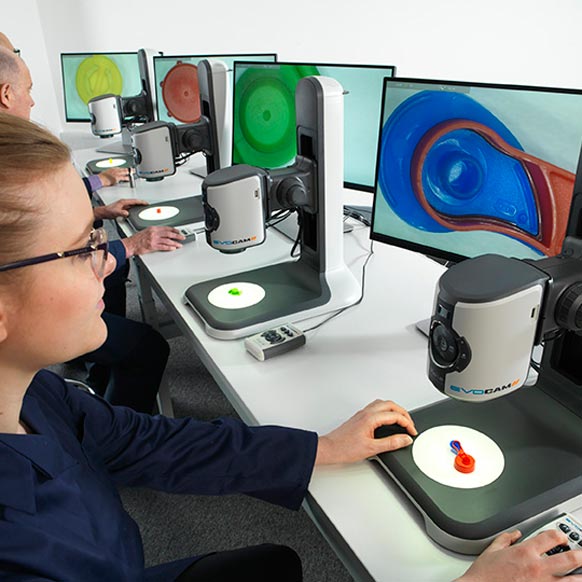

This digital microscope system delivers superb image quality to help uncover surface details at a magnification range from 0.8X – 750X with full auto focus, ensuring ultra-sharp images at all times. It is optimised for quality control, testing, inspection and provides on screen measurement, delivering fantastic results in precision manufacturing applications over and over again. Ideal for a wide range of applications including inspection of electronics, automotive, precision engineering, medical devices and plastic parts.
For a full product demonstration or more information about how the EVO Cam Measure could help elevate your visual inspection capabilities, get in touch.
Specifications
- Zoom Ratio 30x
- With 360° Optical Viewer
| Lens option | Magnification range (24" monitor) | Working Distance (mm) | Max Field of View (mm) |
| 0.45x | 2.3x - 68x | 160 | 241 x 134 |
| 0.62x | 3.1x - 93.7x | 106 | 173 x 96 |
| 1.0x | 5.0x - 151.2x | 85 | 88 x 57 |
| 1.5x | 7.6x - 226.8x | 43 | 45 x 36 |
| 2.0x | 10x - 302.4x | 29 | 37 x 27 |
| Wide-field lenses | |||
| 2 Dioptre | 0.8x - 24x | 500 | 600 x 350 | 3 Dioptre | 1.15x - 32.6x | 330 | 420 x 250 | 4 Dioptre | 1.71x - 51.41x | 245 | 293 x 171 | 5 Dioptre | 2.12x - 65.5x | 197 | 232 x 135 |
| Micro objectives | |||
| 5x | 250x - 362x | 21 | 2.1 x 1.3 |
| 10x | 500x - 725x | 22 | 1.0 x 0.65 |
| Setting | Magnification range (24" monitor) | Working Distance (mm) | Max Field of View (mm) | Viewing Angle | Zoom ratio |
| 360° Rotating View | 19x - 105x | 35.5 | 26 x 22 | 34° | 5.3x |
| Direct View | 28x - 151x | 56.5 | 20 x 11 | N/A | 5.3x |
