Mahr MarSurf PS10

Entry-level portable roughness measuring instrument

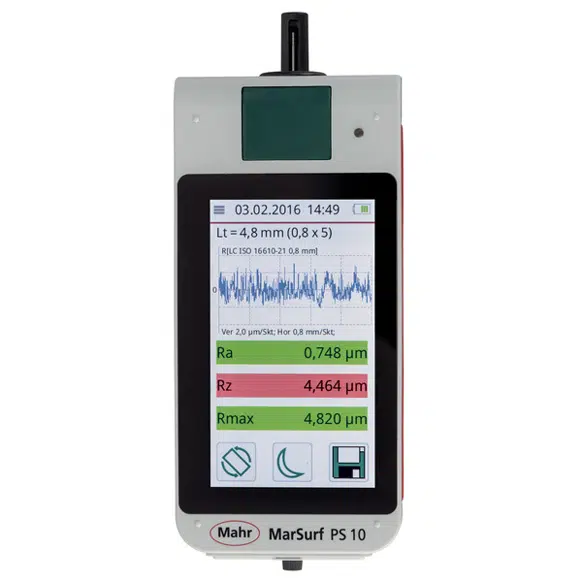

The Mahr MarSurf PS10 is an entry-level tactile stylus based surface measurement device that is both intuitive and simple to use, for high precision surface measurement of most surfaces. It features a removable drive unit and TFT touch display which can be turned in any direction, making the MarSurf PS10 ideal for use in production manufacturing applications.

The small and lightweight design ensures roughness measurements can be taken anywhere within the facility, yet it has the same range of functionality as a laboratory-based instrument.

Measuring records can be saved as PDF files in the instrument itself (up to 1500) or transferred using MarCom for long-term storage.

Stylus method measuring principle with either 2μm probe as default or option of 5μm probe depending on the application. Talk to us at Optimax about our portable roughness measurement instruments.

Enquire
Request a Demo

Specifications

Product Highlights

  • Small and light weight, on-site surface roughness measurement
  • Large illuminated 4.3" TFT touch display
  • Removable drive unit for increased flexibility
  • Same range of functions as a laboratory instrument
  • Large integrated memory 3900 profiles, 500,000 results, 1500 pdf files

Key Numbers

  • Stylus method measuring principle either 2μm default probe tip or 5μm option available
  • Measuring range 350 μm
  • Profile resolution 8nm
  • Dimensions 160 x 77 x 50mm
  • Weight 500g
