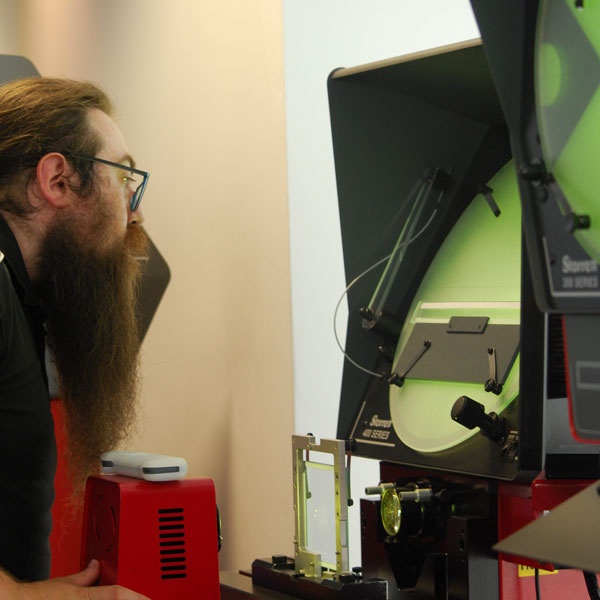

Starrett HE400 Horizontal Bench Top Shadowgraph

Horizontal bench-top profile projector with readout system

One of Starrett’s most budget-friendly profile projectors, the HE400 does not compromise on engineering quality.

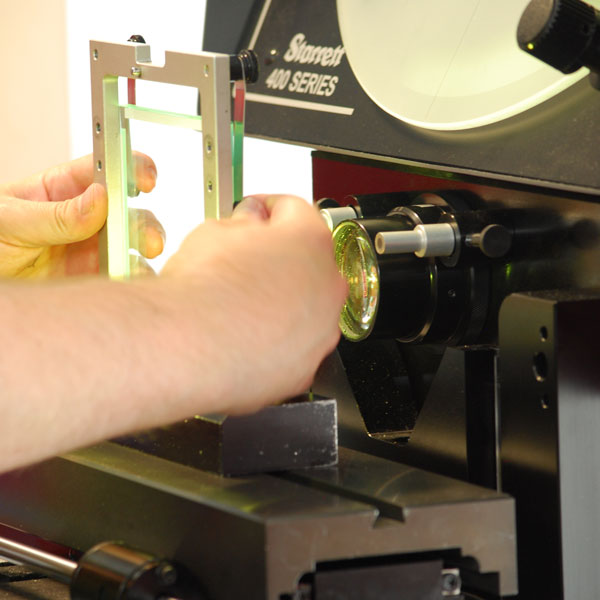

This bench top profile projector has a 400mm diameter screen and a 250mm fast traverse X-axis travel with 100mm Y-travel controlled by linear encoders with 0.5µm resolution and fine adjustment on all axes. The precision 480mm x 120mm workstage has a top plate with machined slot for easy fixturing  of vices and centres and a weight capacity of 7kg.

The HE400 profile projector is perfect for inspecting small components within automotive, aerospace, and other precision engineering applications. With a choice of six quick change bayonet fitting lenses, Q-axis angular readout and LED profile and surface illumination it provides an exceptional wide range of dimensional inspection applications and complex measuring requirements.

The HE400 bench-top shadowgraph has a sturdy, metal construction and is fitted with industry-leading MetLogix digital readout system as standard making measurement and inspection simple, yet powerful enough to meet complex measuring requirements.

Upgrades include MetLogix™ or PC based touch screen measuring software, edge detection and cabinet stand.

Optimax engineers install and UKAS-calibrate all our measurement systems. If you’re looking for a robust horizontal bench top profile projector or optical comparator, the Starrett range offers an excellent solution. We also provide a range of Vision Systems

The HE400 is also available as a bundle with the Optivu Synergy PC software.

Enquire
Request a Demo

Specifications

Why Choose Starrett HE400?

  • Lamphouse mounted helix adjustment for accurate threadform inspection
  • With precision cross lines, overlay clips and integral hood
  • Large measuring travel: 254 X-axis x 100mm Y-axis
  • High precision workstage

Key Numbers

  • 480 x 120mm top plate with machined slot
  • 25kg stage weight capacity
  • Lenses available from 10x - 100x
  • 400mm diameter screen

Accessories

Available with a large range of accessories, including:

  • A full range of Quadra-Chek or Metlogix M2 readout systems
  • Precision Centres and Vees
  • Vertical glass plate holder
  • Magnification check graticule
  • 32mm capacity rotary or fixed vice
  • Universal rotary vee block
  • Projector support cabinet
